Remote Procedure Calls

The TEG gateway supports Remote Procedure Calls (RPC) via ThingsBoard’s built-in RPC mechanism. RPCs allow external applications, automation scripts, or ThingsBoard dashboards to invoke predefined commands on the TEG gateway and receive immediate feedback.

This mechanism is primarily intended for operational control, diagnostics, and maintenance tasks that must be executed on-demand without direct access to the device.

Overview

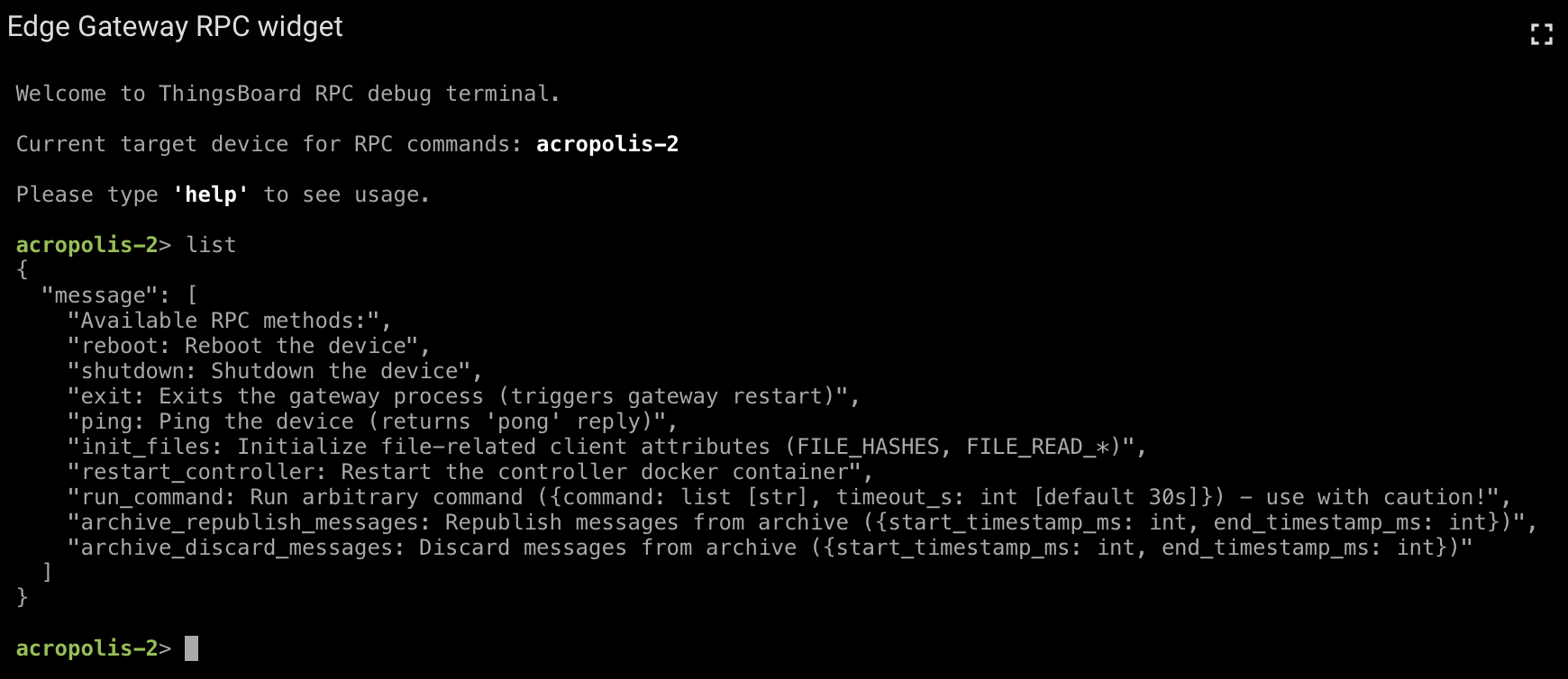

ThingsBoard provides an RPC widget that acts as an interactive console within dashboards. Using this widget, users can send RPC requests to a specific TEG gateway device and inspect the returned responses in real time.

RPCs are executed by the TEG gateway and are restricted to a predefined set of supported commands to ensure safe and controlled operation. Unsupported or unknown RPC methods are rejected and return an error response without executing any action on the device.

For a general introduction to ThingsBoard RPCs, refer to the official documentation: https://thingsboard.io/docs/user-guide/rpc/

Built-in RPC Command: list

The TEG gateway controller exposes a built-in RPC command named list. This command returns a human-readable list of all RPC commands currently supported by the controller, including a short description of each command and its expected parameters.

This command is useful for quickly verifying RPC capabilities.

Example response:

{
  "message": [
    "Available RPC methods:",
    "reboot: Reboot the device",
    "shutdown: Shutdown the device",
    "exit: Exits the gateway process (triggers gateway restart)",
    "ping: Ping the device (returns 'pong' reply)",
    "init_files: Initialize file-related client attributes (FILE_HASHES, FILE_READ_*)",
    "restart_controller: Restart the controller docker container",
    "run_command: Run arbitrary command ({command: list [str], timeout_s: int [default 30s]}) - use with caution!",
    "archive_republish_messages: Republish messages from archive ({start_timestamp_ms: int, end_timestamp_ms: int})",
    "archive_discard_messages: Discard messages from archive ({start_timestamp_ms: int, end_timestamp_ms: int})"
  ]
}

Supported RPC Commands

The following RPC commands are currently supported by the TEG gateway controller. Command availability may depend on the deployed controller version.

ping

Performs a simple connectivity check.

Description

Returns a static pong response if the controller is reachable and responsive.

Parameters

None

Typical use cases

• Verify basic connectivity

• Confirm controller responsiveness

reboot

Reboots the TEG gateway host system.

Description

Performs a full system reboot of the device.

Parameters

None

Notes

• This command interrupts all running services.

• Use with care on production systems.

shutdown

Shuts down the TEG gateway host system.

Description

Powers off the device gracefully.

Parameters

None

Notes

• Physical access is required to restart the device afterward.

exit

Terminates the TEG gateway process.

Description

Stops the gateway Docker container, which triggers an automatic restart by Docker.

Parameters

None

Notes

• Performs a clean restart of the gateway Docker container

• Allows to apply gateway-level configuration or software changes.

• The restart is performed by the Docker runtime and does not reboot the host system.

restart_controller

Restarts the controller software Docker container.

Description

Stops and restarts the controller Docker container without affecting the gateway runtime.

This command does not restart the TEG gateway process itself. Telemetry buffering, file synchronization, and connectivity to ThingsBoard remain active during the controller restart.

Parameters

None

Typical use cases

• Manually apply controller configuration changes

• Recover from transient controller errors

init_files

Initializes file-related client attributes required for remote file management.

Description

Creates and initializes the client attributes required for the Remote File Management feature, most notably FILE_HASHES and all FILE_READ_<file_key> attributes. This RPC allows the file management initialization process to be triggered manually. Under normal conditions, it is executed automatically after a successful device provisioning.

Parameters

None

Typical use cases

• Manually trigger file management initialization

• Recover from incomplete or failed provisioning

• Initialize file management on pre-configured or cloned devices

run_command

Executes an arbitrary command on the TEG gateway host.

Description

Executes a shell command on the device and returns the command output.

Parameters

• command (list of strings, required): Command and arguments

• timeout_s (integer, optional): Command timeout in seconds (default: 30)

Notes

• This command is performed within the gateway runtime environment on the host system, not within the controller container.

• The command is executed with the same permissions as the gateway process, which may have security implications.

• Use with extreme caution, as it can lead to service interruptions or security risks if misused.

• Command execution is synchronous and blocks until completion or timeout. Long-running commands may temporarily delay other RPC handling.

archive_republish_messages

Republishes archived telemetry messages.

Description

Republishes previously archived telemetry messages within a specified time range. This allows locally stored messages that were lost in transmission to be reprocessed and sent to ThingsBoard.

The specified time range is inclusive and evaluated using the message timestamps stored in the local archive.

Parameters

• start_timestamp_ms (integer): Start of the time range (Unix timestamp in milliseconds)

• end_timestamp_ms (integer): End of the time range (Unix timestamp in milliseconds)

archive_discard_messages

Discards archived telemetry messages.

Description

Permanently deletes archived telemetry messages within a specified time range. This allows to free up local storage space by removing messages that are no longer needed or have already been successfully transmitted to ThingsBoard.

The specified time range is inclusive and evaluated using the message timestamps stored in the local archive.

Parameters

• start_timestamp_ms (integer): Start of the time range (Unix timestamp in milliseconds)

• end_timestamp_ms (integer): End of the time range (Unix timestamp in milliseconds)

Security Considerations

RPC commands provide powerful control over TEG gateway devices. It is strongly recommended to:

• Restrict RPC access to trusted users and dashboards only

• Avoid exposing sensitive commands such as run_command to non-administrative users

• Use ThingsBoard role-based access control to limit operational impact

Improper use of RPC commands may lead to service interruptions or security risks.

For production deployments, it is recommended to disable or restrict destructive RPC commands entirely.
