🌋 EM27 Retrieval Pipeline: Automated EM27/SUN Data Processing

We retrieve a lot of EM27/SUN data, due to running MUCCnet (Dietrich et al., 2021) in an automated setup, and have used this pipeline since end of 2021.

This codebase provides an automated data pipeline for Proffast 1 and 2.X. Under the hood, it uses the Proffast Pylot to interact with Proffast 2 and an in-house connector to interact with Proffast 1. Whenever using this pipeline for Proffast retrievals, please make sure to also cite Proffast and the Proffast Pylot (for Proffast 2.X retrievals).

📚 Read the documentation at tum-esm.github.io/em27-retrieval-pipeline.
💾 Get the source code at github.com/tum-esm/em27-retrieval-pipeline.
🐝 Report Issues or discuss enhancements using issues on GitHub.

Related Projects:

⚙️ Many of our projects (including this pipeline) use functionality from the tum-esm-utils package.
🤖 Our EM27/SUN systems are running autonomously with the help of Pyra.

EM27 Retrieval Pipeline vs. PROFFASTpylot

This pipeline does not intend to replace the Proffast Pylot by any means. It uses most of the Pylot’s functionality and provides an automation layer on top of that. You can use Proffast directly for full flexibility, the Pylot for some flexibility, or this pipeline, which is more opinionated than the Pylot but highly automated. Furthermore, this pipeline will continue to include support for the different retrieval algorithms.

What does this pipeline do?

The pipeline consists of three building blocks that are required to retrieve EM27 data:

1. Downloading vertical profiles from the Caltech FTP server:
   python cli.py ggg_profiles_downloader run
2. Running the retrieval to generate the averaged column concentrations:
   python cli.py retrieval start
3. Bundle all retrieval results into one file per sensor/retrieval alg./atm. profile:
   python cli.py bundle run

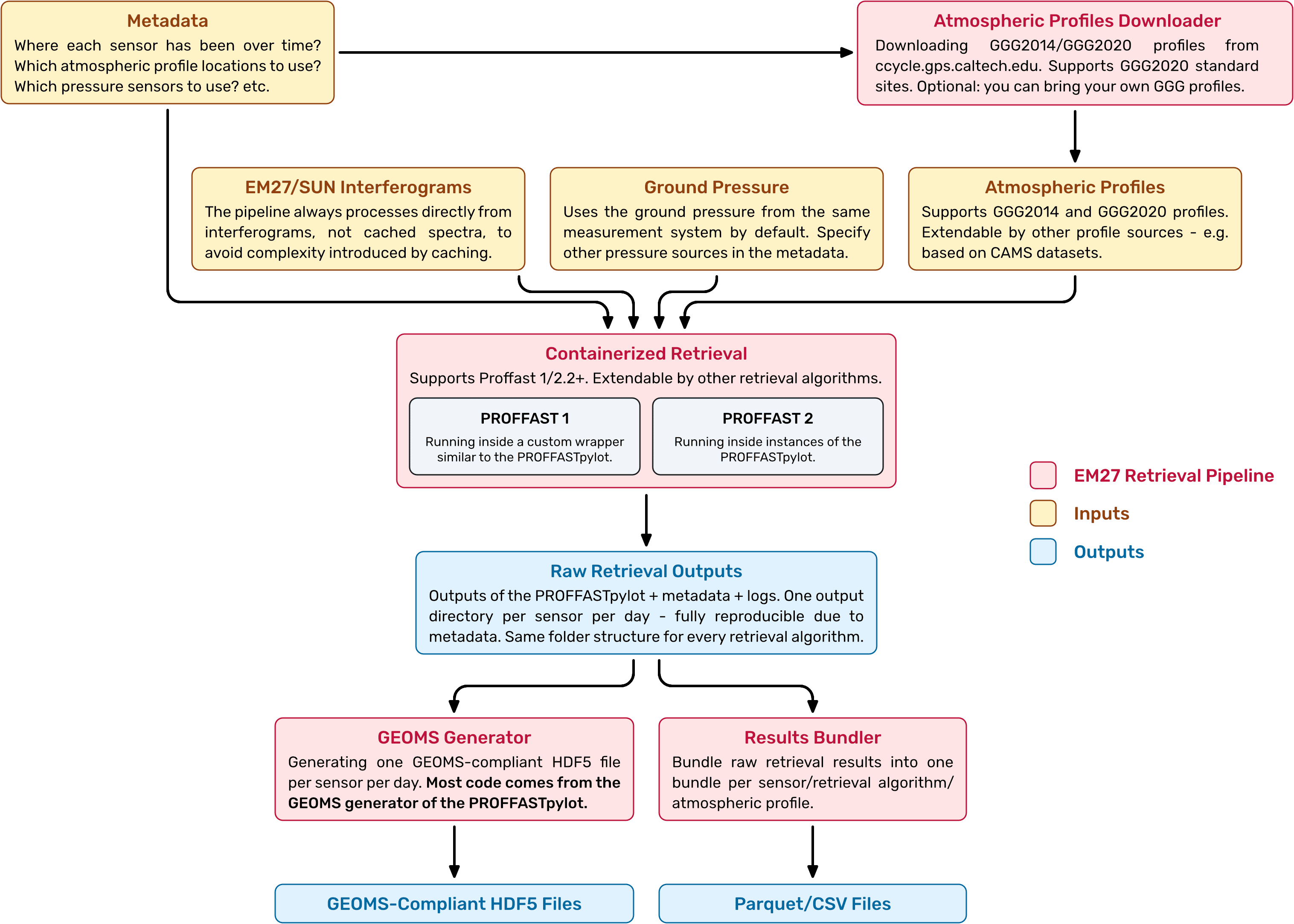

The data flow from input to merged outputs:

Getting started

Please visit the Quick Start Guide to install the pipeline on your system and run the example. You can look into the API Reference pages for an exact schema definition and explanation of every parameter. You can also use the documentation’s search function (top navbar) to find what you are looking for.

All features of this pipeline

Easy configuration of using a validated config.toml (and metadata files): By “validated”, we mean that before the processing starts, the config files content will be parsed and validated against a TOML schema. This way, you can be sure that the pipeline will not fail due to a misconfiguration, and you will immediately get precise error messages.

Opinionated management of station metadata: We manage our EM27 metadata using TOML files, described here and with a full schema reference here

Filtering of interferogram files that Proffast cannot process: When some interferograms are corrupted, Proffast will fail during preprocessing for whole days of data even when only a few out of thousands of interferograms are bad. The pipeline filters out these interferograms and only passes the valid ones to Proffast. A standalone version of this filtering functionality is included in our utility library

Parallelization of the Proffast Pylot execution: The Pylot already provides parallelization. However, we decided to isolate the approach of the Pylot more and run the retrieval execution for each station and date individually inside a containerized environment. This way, errors during the retrieval don’t affect separate days/stations, and we have separated outputs and logs.

Fully automated interface to obtain Ginput Data: The atmospheric profiles downloader of this pipeline automates the request for GGG2014 and GGG2020 data (supporting standard sites) from ftp://ccycle.gps.caltech.edu. The manual instructions can be found here.

Comprehensive logs and output data management: It will store failed and succeeded containers. The output is the same as with the Pylot but also contains all config files the pipeline used to run this container and logs generated by the container.

Bundling of retrieval results: The raw retrieval outputs will be distributed over hundreds or thousands of folders and files. The bundling script of this pipeline will merge these outputs into one file per station, retrieval algorithm, and atmospheric profile. This way, you can easily access the data for further processing. Read about it (here).

Documentation and complete API reference: hosted at tum-esm.github.io/em27-retrieval-pipeline

Contributing

We are happy to include any feature that is useful for the COCCON community. We are also open to expand the pipeline to other retrieval algorithms or spectrometers.

If you have issues or feature requests, please open an issue on GitHub or ask Moritz Oliveira Makowski (moritz.makowski@tum.de). Please read the contributors guidelines and the code of conduct first.

Have a look at the Developer Guides for more information regarding the development of this pipeline.
