Full Usage Guide

Downloading GGG Profiles

This pipeline automates the process of obtaining atmospheric profiles described in the Ginput documentation. Configure the FTP email address under ggg_profiles_downloader.server.email and the requested date range, models, and locations under ggg_profiles_downloader.scope.

Run the following command to download all the profiles:

python cli.py ggg_profiles_downloader run

The downloader uses the metadata and configured local profiles directory to determine which profiles are missing. Each run requests missing profiles and checks the results of ongoing requests.

This process ensures that only ggg_profiles_downloader.server.max_parallel_requests queries run simultaneously. It only requests the same profiles again if they have not been generated within 24 hours. The downloader can also handle partial query results, such as five fulfilled days from a seven-day request.

Use ggg_profiles_downloader.ggg2020_standard_sites to configure pre-generated GGG2020 standard-site data. The downloader fetches these profiles directly instead of submitting generation requests for them.

Run the following to request the current queue status of your account:

python cli.py ggg_profiles_downloader request-ginput-status

---

Running Retrievals

Use the following commands to start the retrievals in a background process.

python cli.py retrieval start

You can limit the number of concurrent retrieval processes using retrieval.general.max_process_count.

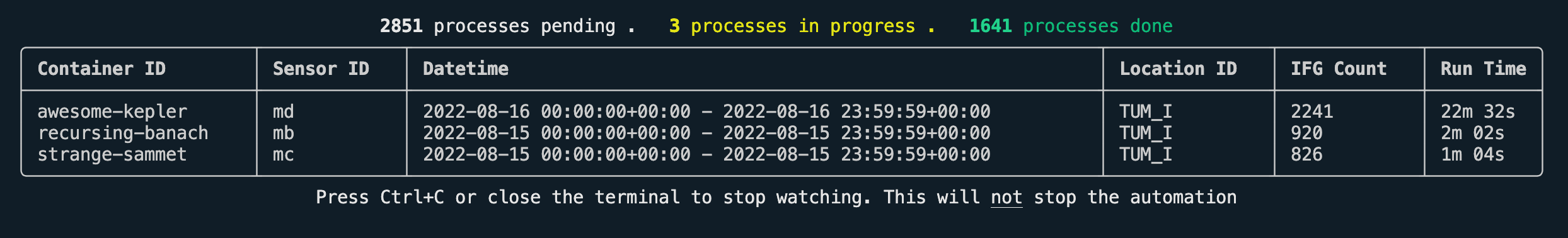

Using the following commands, you can check whether the retrievals are still running and open a dashboard to monitor the progress.

python cli.py retrieval is-running
python cli.py retrieval watch

Terminate the ongoing retrievals using the following command:

python cli.py retrieval stop

---

Bundling All Retrieval Outputs

Bundle all the retrieval outputs using the following command:

python cli.py bundle run

You can specify multiple [[bundle_exports]] entries in config.toml; the command processes each configured export.

---

Generating GEOMS-compliant HDF5 files

The Generic Earth Observation Metadata Standard (GEOMS) is a standard for exchanging ground-based total-column concentration data. It uses the HDF5 file format and enforces a specific structure for the data (see guidelines from EVDC).

This pipeline can generate GEOMS-compliant HDF5 files from retrieval outputs. Add one or more [[geoms_exports]] entries to config.toml to define the sensors, algorithms, atmospheric-profile models, time range, and filtering settings to export. The separate geoms_metadata.toml file contains the GEOMS file metadata and calibration factors. See the config.toml reference, geoms_metadata.toml reference, and repository templates for the complete schemas.

As always, the pipeline will tell you if any of your configuration files are invalid. Create the GEOMS files using the following command:

python cli.py geoms run

The logs report which files were generated:

Config is valid
Loading configuration
Loading geoms metadata
Processing proffast-2.4/GGG2020
Processing sensor id "ma"
Sensor ma: found 1105 results in total
Sensor ma: found 173 results within the time range
  ma/20240501: Generated .../proffast-2.4/GGG2020/ma/successful/20240501/groundbased_ftir.coccon_tum.esm061_munich.tum_20240501t114016z_20240501t171933z_001.h5
  ma/20240502: Generated .../proffast-2.4/GGG2020/ma/successful/20240502/groundbased_ftir.coccon_tum.esm061_munich.tum_20240502t070418z_20240502t164544z_001.h5
  ma/20240504: Generated .../proffast-2.4/GGG2020/ma/successful/20240504/groundbased_ftir.coccon_tum.esm061_munich.tum_20240504t053204z_20240504t171926z_001.h5
  ma/20240505: Generated .../proffast-2.4/GGG2020/ma/successful/20240505/groundbased_ftir.coccon_tum.esm061_munich.tum_20240505t051558z_20240505t172421z_001.h5
  ma/20240506: Generated .../proffast-2.4/GGG2020/ma/successful/20240506/groundbased_ftir.coccon_tum.esm061_munich.tum_20240506t052157z_20240506t125438z_001.h5
  ma/20240507: Not enough data (less than 11 datapoints)
  ma/20240509: Generated .../proffast-2.4/GGG2020/ma/successful/20240509/groundbased_ftir.coccon_tum.esm061_munich.tum_20240509t072631z_20240509t152931z_001.h5
  ma/20240510: Generated .../proffast-2.4/GGG2020/ma/successful/20240510/groundbased_ftir.coccon_tum.esm061_munich.tum_20240510t061155z_20240510t083149z_001.h5
ma/20240511:  5%|██████                                                                                                            | 8/173 [00:19<03:07, 1.20s/it]

You can verify the integrity of these HDF5 files using the AVDC’s Quality Assurance Tool or NILU’s GEOMS File Format Checker.

Note

The code to generate these GEOMS compliant HDF5 files has been adapted from the PROFFASTpylot. The authors of the original code are Lena Feld, Benedikt Herkommer, Darko Dubravica affiliated with the Karlsruhe Institut of Technology (KIT).

Please make sure to not only cite this pipeline, but also the Proffast Pylot when using this feature.

---

Generate a Data Report

You can generate a report about the data on your system using the following command:

python cli.py data-report

This command produces one CSV file per sensor ID in the data/reports/ directory. For example:

from_datetime,to_datetime,location_id,interferograms,ground_pressure,ggg2014_profiles,ggg2014_proffast_10_outputs,ggg2014_proffast_22_outputs,ggg2014_proffast_23_outputs,ggg2020_profiles,ggg2020_proffast_22_outputs,ggg2020_proffast_23_outputs
2023-09-07T00:00:00+0000,2023-09-07T23:59:59+0000,   TUM_I, 2224, 1440,✅,-,✅,✅,✅,-,✅
2023-09-08T00:00:00+0000,2023-09-08T23:59:59+0000,   TUM_I, 2178, 1440,✅,-,✅,✅,✅,-,✅
2023-09-09T00:00:00+0000,2023-09-09T23:59:59+0000,   TUM_I, 1966, 1440,✅,-,✅,✅,✅,-,✅
2023-09-10T00:00:00+0000,2023-09-10T23:59:59+0000,   TUM_I, 2034, 1440,✅,-,✅,✅,✅,-,✅
2023-09-11T00:00:00+0000,2023-09-11T23:59:59+0000,   TUM_I, 2122, 1440,✅,-,✅,✅,✅,-,✅
2023-09-12T00:00:00+0000,2023-09-12T23:59:59+0000,   TUM_I, 1972, 1440,✅,-,✅,✅,✅,-,✅
2023-09-13T00:00:00+0000,2023-09-13T23:59:59+0000,   TUM_I,  216, 1439,✅,-,✅,✅,✅,-,✅
2023-09-14T00:00:00+0000,2023-09-14T23:59:59+0000,   TUM_I,  762, 1440,✅,-,✅,✅,✅,-,✅
2023-09-15T00:00:00+0000,2023-09-15T23:59:59+0000,   TUM_I, 1507, 1440,✅,-,✅,✅,✅,-,✅
2023-09-16T00:00:00+0000,2023-09-16T23:59:59+0000,   TUM_I, 2232, 1440,✅,-,✅,✅,✅,-,✅
2023-09-17T00:00:00+0000,2023-09-17T23:59:59+0000,   TUM_I, 1599, 1440,✅,-,✅,✅,✅,-,✅
2023-09-18T00:00:00+0000,2023-09-18T23:59:59+0000,   TUM_I,  228, 1440,✅,-,✅,✅,✅,-,✅

The interferograms and ground_pressure columns contain the number of interferograms and ground-pressure rows found for the respective day. Retrieval and profile columns use ✅ for present data, ❌ for failed retrievals, and - when no data is present.

---

Running the Retrieval on a Cluster

You can of course run this pipeline on a computing cluster (e.g. SLURM-based).

Since the python cli.py retrieval start command terminates after starting the pipeline in the background, any compute node would also terminate right away. Therefore, you have to call the underlying main.py script of the retrieval module: python src/retrieval/main.py.

We use the following SLURM script on CoolMUC-4 at LRZ:

#!/bin/bash
#SBATCH -J erp
#SBATCH -o /path/to/em27-retrieval-pipeline/data/logs/%x.%j.%N.out
#SBATCH -D /path/to/em27-retrieval-pipeline
#SBATCH --clusters=cm4
#SBATCH --partition=cm4_tiny
#SBATCH --qos=cm4_tiny
#SBATCH --time=06:00:00
#SBATCH --nodes=1
#SBATCH --cpus-per-task=112
#SBATCH --export=NONE
#SBATCH --get-user-env
#SBATCH --mail-type=all
#SBATCH --mail-user=you@example.com

# setup environment: git is used to determine the commit hash of the currently
# running pipeline, gfortran (GCC) is used to compile PROFFAST and the IFG
# corruption filter
module load slurm_setup
module load git
module load gcc/13.2.0

# activate virtual environment: we set up the virtual environment on the login
# nodes, but you can also do that inside the compute nodes
source .venv/bin/activate

# run retrieval
python src/retrieval/main.py

Dispatch it with SLURM using:

sbatch cm4.sh  # using your script name

As of pipeline version 1.6.2, the retrieval watcher also works when the retrieval process is running on a separate node using the --cluster-mode flag:

python cli.py retrieval watch --cluster-mode

Don’t forget to increase the number of parallel processes of the pipeline with config.retrieval.general.max_process_count 😉. We run 100 retrievals in parallel on CoolMUC-4.

Tip

You might have a fast temporary storage system available on your compute nodes. By default, the pipeline uses ./data/containers to store all the temporary process data (Proffast environment, spectra, temporary results, etc.). You can use config.retrieval.general.container_dir to change this path. On our compute nodes, we set this to /tmp/erp because we have a local SSD mounted at /tmp and processing there is much faster than on a network file system.

If your system/your compute nodes have enough memory, you could also use /dev/shm which is a memory-based file system where files are stored in memory and never written to disk.
