Configuration

The config/config.toml file configures all steps of the pipeline. You can use the config/config.template.toml file as a template to create your own configuration file. The only parts in this file that are required are the version number, the metadata and data sections. The ggg_profiles_downloader, retrieval, bundle_exports and geoms_exports sections can be omitted if you don’t use these parts of the pipeline.

The next sections will describe how to define the EM27 metadata, the data (input and output file paths), and how to use the ggg_profiles_downloader, retrieval, bundle_exports and geoms_exports features.

Note

The full schema specification and description of each parameter can be found in the API Reference section.

Note

If you upgrading from a pipeline version <1.11.0 to a version >=1.11.0, you will notice that we changed all configuration files from a JSON format to a TOML format with the release 1.11.0.

A full explanation on this change can be found in the the Config Migration Guide.

---

Template

version = "1.11"

# METADATA

[metadata]
source = "local"

# DATA

[data.atmospheric_profiles]
path = "path-to-atmospheric-profiles"

[data.ground_pressure]
path = "path-to-ground-pressure-data"
file_regex = "^ground-pressure-$(SENSOR_ID)-$(YYYY)-$(MM)-$(DD).csv$"
separator = ","
pressure_column = "pressure"
pressure_column_format = "hPa"
date_column = "UTCdate_____"
date_column_format = "%Y-%m-%d"
time_column = "UTCtime_____"
time_column_format = "%H:%M:%S"

[data.interferograms]
path = "path-to-interferogram-directory"
ifg_file_regex = "^$(SENSOR_ID)$(DATE).*\\.\\d+$"

[data.results]
path = "path-to-results-directory"

# GGG PROFILES DOWNLOADER

[ggg_profiles_downloader.server]
email = "...@..."
max_parallel_requests = 25

[ggg_profiles_downloader.scope]
from_date = "2022-01-01"
to_date = "2022-01-05"
models = [ "GGG2014", "GGG2020" ]
force_download_locations = [ "TUM_I" ]

[[ggg_profiles_downloader.ggg2020_standard_sites]]
identifier = "mu"
lat = 48.151
lon = 11.569
from_date = "2019-01-01"
to_date = "2099-12-31"

# RETRIEVAL

[retrieval.general]
max_process_count = 9
queue_verbosity = "compact"

[retrieval.jobs.0]
retrieval_algorithm = "proffast-1.0"
atmospheric_profile_model = "GGG2014"
sensor_ids = [ "ma", "mb", "mc", "md", "me" ]
from_date = "2019-01-01"
to_date = "2022-12-31"
store_binary_spectra = true
dc_min_threshold = 0.05
dc_var_threshold = 0.1
use_local_pressure_in_pcxs = true
use_ifg_corruption_filter = false

[retrieval.jobs.0.custom_ils.ma]
channel1_me = 0.9892
channel1_pe = -0.001082
channel2_me = 0.9892
channel2_pe = -0.001082

[retrieval.jobs.0.custom_ils.mb]
channel1_me = 0.9893
channel1_pe = -0.001083
channel2_me = 0.9893
channel2_pe = -0.001083

[retrieval.jobs.1]
retrieval_algorithm = "proffast-2.4"
atmospheric_profile_model = "GGG2020"
sensor_ids = [ "ma", "mb", "mc", "md", "me" ]
from_date = "2019-01-01"
to_date = "2099-12-31"

# BUNDLE GENERATOR

[[bundle_exports]]
dst_dir = "directory-to-write-the-bundles-to"
output_formats = [ "csv", "parquet" ]
from_datetime = "2022-01-01T00:00:00Z"
to_datetime = "2022-12-31T23:59:59Z"
retrieval_algorithms = [ "proffast-1.0", "proffast-2.4" ]
atmospheric_profile_models = [ "GGG2014", "GGG2020" ]
sensor_ids = [ "ma", "mb", "mc", "md", "me" ]
parse_dc_timeseries = true
parse_retrieval_diagnostics = true

# GEOMS GENERATOR

[[geoms_exports]]
sensor_ids = [ "ma", "mb", "mc", "md", "me" ]
retrieval_algorithms = [ "proffast-1.0", "proffast-2.4" ]
atmospheric_profile_models = [ "GGG2014", "GGG2020" ]
from_datetime = "2022-01-01T00:00:00Z"
to_datetime = "2022-12-31T23:59:59Z"
parse_dc_timeseries = false
max_sza = 80
min_xair = 0.98
max_xair = 1.02
conflict_mode = "replace"

---

Validation

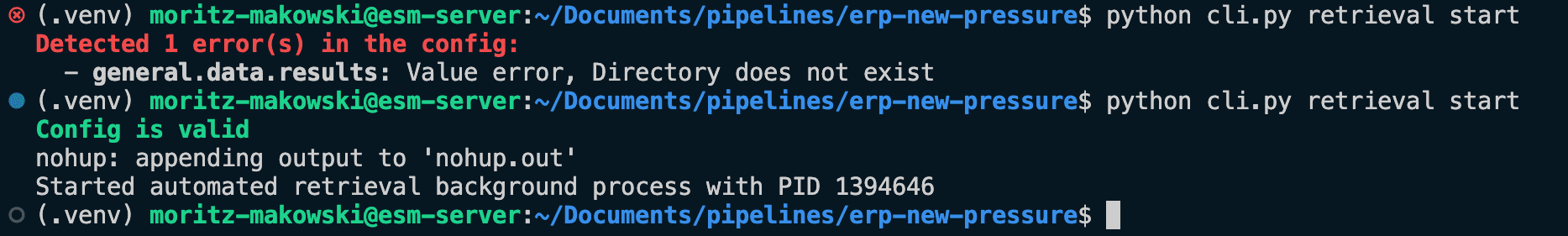

Whenever calling the pipelines CLI, it will validate the integrity of your local config.toml file and output a message if your system is not correctly configured:
